Description
ground panoramic night vision goggles Nocturn Industries Chimera Panoramic Night Vision System – Cold Harbour SupplyPre Orders Now Open May shipment of magnesium housings is SOLD OUT. Taking Pre orders for June shipment. Polymer Aluminum ETA August 31, 2026 The Nocturn Industries Chimera Panoramic Night Vision System is the first articulating quad tube night vision device, combining advanced panoramic performance with a compact, ergonomic design, improved optical package, and reinforced optic interfaces in one robust package. This patented design achieves an
Pre-Orders Now Open
May shipment of magnesium housings is SOLD OUT. Taking Pre-orders for June shipment.
Polymer/Aluminum ETA August 31, 2026

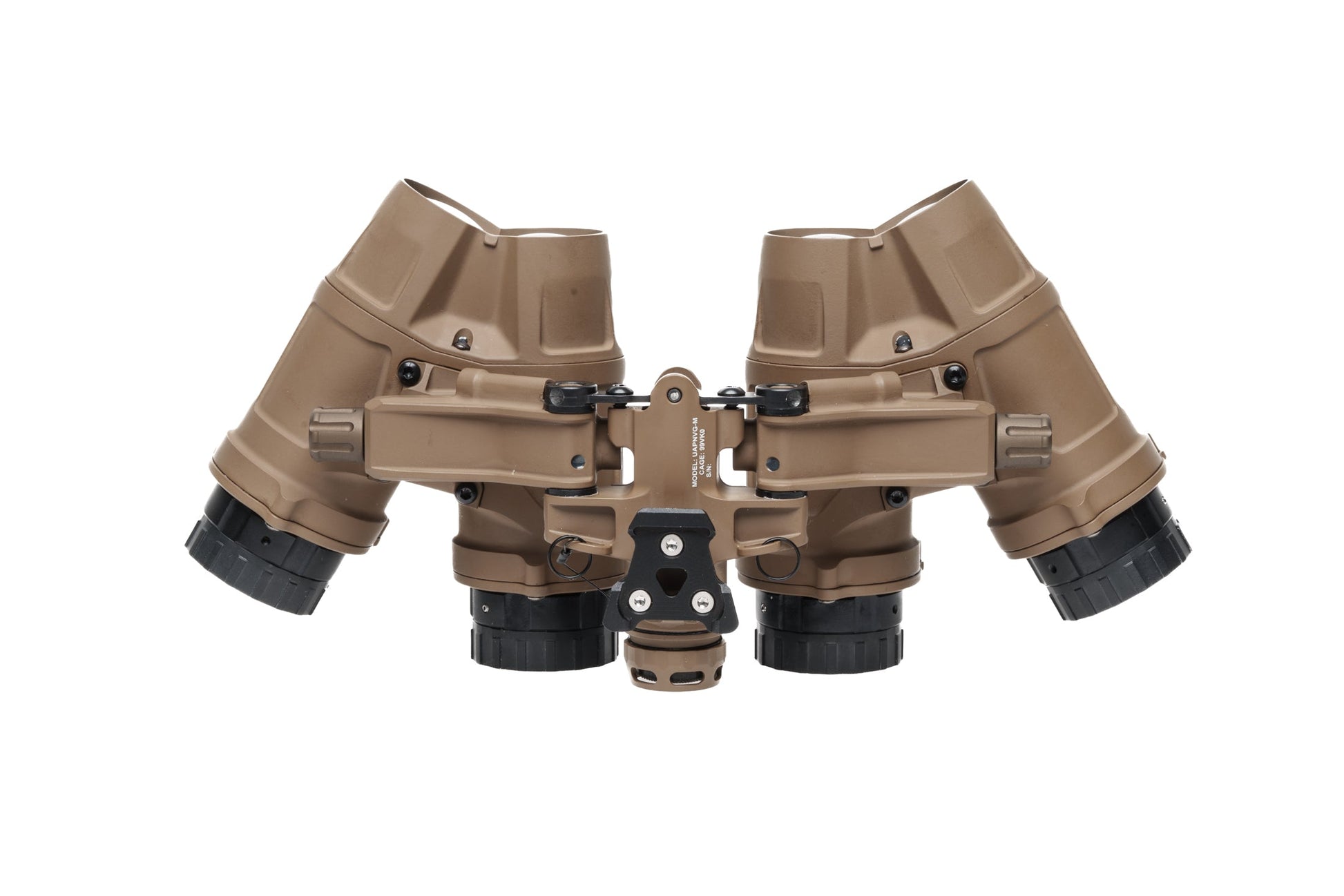

The Nocturn Industries Chimera Panoramic Night Vision System is the first articulating quad-tube night vision device, combining advanced panoramic performance with a compact, ergonomic design, improved optical package, and reinforced optic interfaces in one robust package.
This patented design achieves an exceptionally low overall profile by allowing the optical pods to articulate and stow rearward toward the helmet. When stowed, the system presents a profile comparable to traditional articulating binoculars. By shifting the center of gravity closer to the neck’s natural pivot point, Chimera significantly improves balance and comfort while reducing neck fatigue during extended use.
Each optical pod can be articulated and stowed independently, without fully folding the system. This enables improved head clearance in vehicles, easier movement through doorways and confined spaces, reduced snag hazards in brush, and immediate access to night vision when needed. The design also supports efficient operation alongside weapon-mounted optics or thermal devices, allowing users to adapt quickly to dynamic environments.
Key Features:
- Patented articulating design allows users to fold each pair of optic pods towards the helmet, reducing head/neck fatigue and reducing profile for vehicle operations and low-overhead thresholds
- Completely redesigned optical package OEM'd by Rochester Precision Optics (Rochester, NY) with ~20% larger eyebox, allowing greater operator flexibility on how the goggle is worn, and ensuring full FOV even with gas masks
- Completely redesigned optic pod interface that won't break from the bridge (common on L3 GPNVG and replicas)
- Compatible with all PVS-14 pattern objective lens accessories (eg: Lens Protectors, Day-Time Training Filters, LIFs, or CHADs)
- Dual-Fuel capable - onboard CR123A (10+ hours of battery life) and/or offboard via 00B LEMO port (~40+ hours of runtime) - swappable with optional 4-pin Fischer or can be run slick (no offboard power port) via replaceable bottom plate
- Easy push-button on/off
- Adjustable interpupillary distance adjustments
| Specifications (Magnesium Limited Edition) | |
| Material | 7075-T6 Aluminium Bridge With Steel Reinforcements Machined Magnesium Alloy Pods |
| Tube Type | 3 Contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain |
| Figure of Merit (FOM) SNR x LP/mm |
NNVT-4 Autogated (1400-1600+ FOM) Photonis ECHO (1800-2200 FOM) |
| Weight |
879g (Magnesium Edition) |
| Power Supply | CR123 onboard power, optional 00B LEMO Pack |
| Runtime | 10 Hours Via Onboard CR123A // 40+ Hours Via Battery Pack |
| Lenses | RPO 4.0/NVD-N Lens Set Included |
| Eye Relief | 28mm |
| Field of View | 100º |
| Individual Pod Power Off | Yes when rotated to the side |
| Material Finish | Plasma Electrolytic Oxidation (Magnesium Versions Only) |
| Submersion and Dust Rating | Exceeds IP68+ and MIL-STD-810H testing standards |
| Impact Rating | MIL-STD-810H |
| Mount Style | Built in dovetail mount |
| Onboard IR Illuminator | No |
INCLUDED (Pending)
- Nocturn Industries Chimera
- NVG Lens Storage Caps
- CHS Hard Case (Full Builds Only)
- Tube spec sheet
- Nocturn Industries lifetime housing warranty
- 10 Year CHS Warranty
Add an optional CHS Battery Pack to increase usable battery life and balance your panoramic system here.
